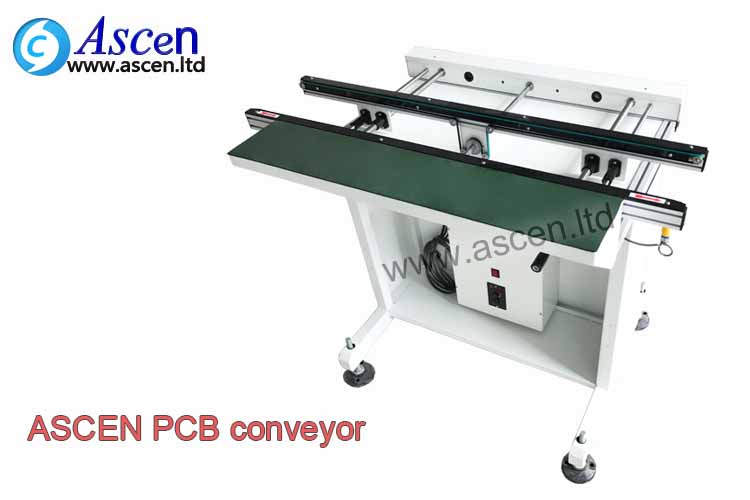

PCB Conveyor is used in the PCB assembly line when frequent visual inspection of PCBs is required, can be used as an PCB Inspection conveyor or a Linking conveyor.
ASCEN technology is available to offer the full range of boards handling machines and also the non-standard transportation solution for the SMT industries.
PCB inspection Conveyorcan link the PCB multi magazine loader unloader for smt assembly production line, this PCB inspection conveyor are mainly use as a PCB workstation,you can custom design meet your requirements are available for PCB printed circuit board transport,manual insertion operation,connect the AOI machine for inspection
Features
Modular design, PLC controlled
Stability enhanced by heavy design
Beautiful design with aluminum finishings
Smooth and parallel width adjustment (stainless steel screws)
Different lengths available upon request
Multi-segment concept available upon request
Automatic/Manual modes
Variable speed control
Inspection button
SMEMA compatible
Conveyor height 950±30mm
Covers for operator protection
High-clearance on request
Cooling fans on top for after-reflow
Motorized width adjustment
Automatic width adjustment controlled by touch screen
Chain transport system
Please click the video link here SMT inspection PCB conveyor to check the machine work detail.
ASCEN technology co.,ltd provide a full SMT assembly line solutions,including PCB handling conveyor, PCB custom conveyor,SMT linking conveyor,PCB belt conveyor ,PCB transfer conveyor, SMT PCB conveyor , SMT inspection PCB conveyor , SMT NG inspection conveyor , PCB magazine loader, PCB magazine unloader,Magazine NG ok PCB unloader, multi magazine NG OK pcb unloader,dual magazine PCB loader&unloader,PCB destacker,PCB vacuum loader,PCB vacuum suction loader,PCB stacker,PCB magazine vacuum loader, mini PCB loader,PCB magazine loader L type,dual magazine PCB unloader,magazine PCB NG OK unloader,multi magazine PCB unloader,Lift gate PCB conveyor,PCB flip conveyor, PCB shuttle conveyor, PCB coating conveyor, telescopic gate conveyor,PCB turn conveyor,PCB linking conveyor,NG reject PCB conveyor, PCB inspection conveyor, dual lane PCB conveyor,are available as standard and customized products and can be equipped to fit special requirements
Please collecting our web:www.ascen.ltd , we will updated more solution for help your assembly line to save more cost.
PCB inspection Conveyor technical parameters
| Item | Scope of application |
| Model number: ( inspection conveyor type) | HY-460 conveyor |
| Dimensions(L*W*H) | 600(length optional )*750*900mm |
| PCB Width | 50-400mm |
| Conveyor Height | 900+/-20mm |
| PCB Direction | L-R(R-L) |
| Speed | 0~1500(mm)/Min |
| Power Consumption | 0.5KW |
| Power Supply | 1P AC220V 50/60HZ |
| Guide-rail Length | 0.6-2M(or as requirement) |
| Control method | Press key+PLC |
| Foot switch | Standard |
| Platform Material | ESD Rubber Mat |
| Communication Plug | SMEMA Signal Plug for up/down line Double-wire cable |
| power consumption | Approx.50W |
| Track length | 600mm(it depend on your requirement) |
| Weight | Approx.80Kg |
|
Note: please confirm us the following detail when you inquiry: 1, what is the PCB linking conveyor length you need? 2, How many section you need for your PCB linking conveyor? 3, What is your Max.PCB width? 4, Whether need add the emergency button and the start button/ specified power cord |
|
