Description:
Compact Loaders
suction Loaders
Multi Magazine Loader
Bare Board Vacuum Loader
Dual Rail Loader
Please click the video link here multi track magazine PCB unloader to check the machine work detail.
ASCEN technology co.,ltd provide a full SMT assembly line solutions,including PCB magazine loader, PCB magazine unloader,Magazine NG ok PCB unloader, multi magazine NG OK pcb unloader,dual magazine PCB loader&unloader,PCB destacker,PCB vacuum loader,PCB vacuum suction loader,PCB stacker,PCB magazine vacuum loader, mini PCB loader,PCB magazine loader L type,dual magazine PCB unloader,magazine PCB NG OK unloader,multi magazine PCB unloader,Lift gate PCB conveyor,PCB flip conveyor, PCB shuttle conveyor, PCB coating conveyor, telescopic gate conveyor,PCB turn conveyor,PCB linking conveyor,NG reject PCB conveyor, PCB inspection conveyor, dual lane PCB conveyor,PCB handling conveyor, PCB custom conveyor,SMT linking conveyor,PCB belt conveyor are available as standard and customized products and can be equipped to fit special requirements
Please collecting our web:www.ascen.ltd , we will updated more solution for help your assembly line to save more cost.

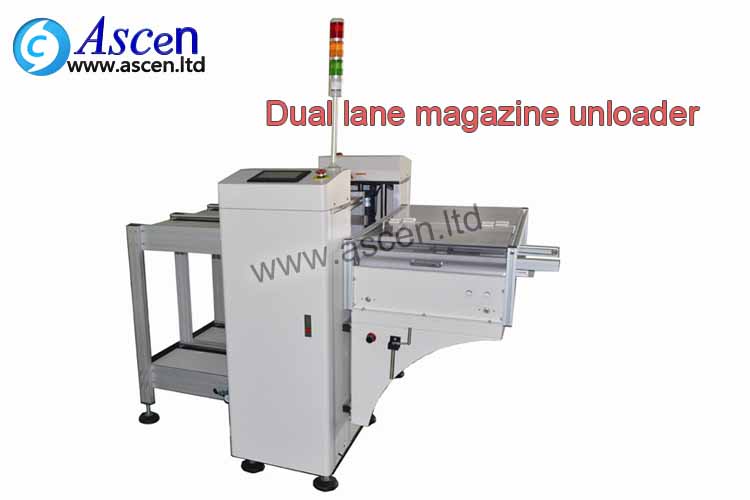

auto smt multi track magazine unloader technical parameters
| Model NO. | HY-250ULD | HY-330ULD | HY-390ULD | Customized large model for the bigger PCB board |
| PCB size(mm) (L*W)-(L*W） | (50*50)-(350*250) | (50*50)-(350*330) | (50*50)-(350*390) | |
| Machine Size(mm) (L*W*H) | 1700*780*1200 | 1900*860*1200 | 2200*920*1200 | |
| Magazine Size (mm) (L*W*H) | 355*320*565 | 460*400*565 | 535*460*565 | |
| Weight(kg) | Approx. 160kg | Approx.200kg | Approx.240kg |
