Description:
1) Machine Size(L*W*H):1700*780*1200
2) 2)Special Aluminum alloy guide rails and rubber belt
3) Magazine lifting with screw rod by 90W electric-brake motor which made in Taiwan
4) Pneumatic PCB clamping structure
5) Attach one set 0.7m length pcb conveyor
6) Direction:R-L/L-R
7) Adjustable Lifting distance:10,20,30,and 40mm
8) Programmable Mitsubishi PLC and controller
9 PCB Automatic loading to conveyor
10) Operation Control system: Touch Panel controlled interface
11) Power: 220V 50HZ
12) Air pressure: 0.4-0.6MPa
13) the max store PCB Quantity:50pcs
14) One set Electronic control box

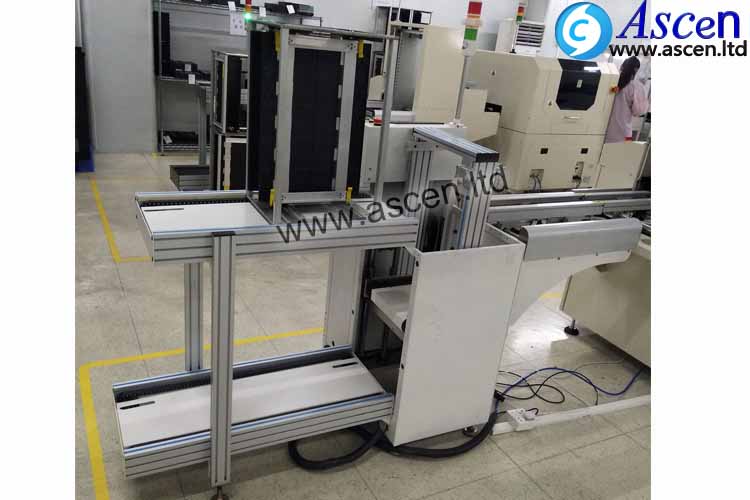

magazine PCB unloader machine

Model NO. HY-250ULD HY-330ULD HY-390ULD Customized large model for the bigger PCB board
PCB size(mm) (L*W)-(L*W） (50*50)-(350*250) (50*50)-(350*330) (50*50)-(350*390)
Machine Size(mm) (L*W*H) 1700*780*1200 1900*860*1200 2200*920*1200
Magazine Size (mm) (L*W*H) 355*320*565 460*400*565 535*460*565
Weight(kg) Approx. 160kg Approx.200kg Approx.240kg
