PCB routing machine depaneling equipment can cutting up to 20 PCBs simultaneously,it mainly use for the PCB assembly in the large mass production with the high efficiency and save a lots of labor for the manufacturer
1.PCB router depaneling machine speeds of up to 100mm/s,positioning speed 500mm/s;
2.Cut continuously without interruption during loading and unloading;
3.High quality shaft system allows the system to quickly ramp,reduce the period of time,Improve productivity, maintaining high precision;
4.Use high-quality hardware to ensure high rigidity and high performance All screws are protected from dust and dirt from entering to improve the life and performance of the shaft;
5.Use high-quality hardware to ensure high rigidity and high performance.

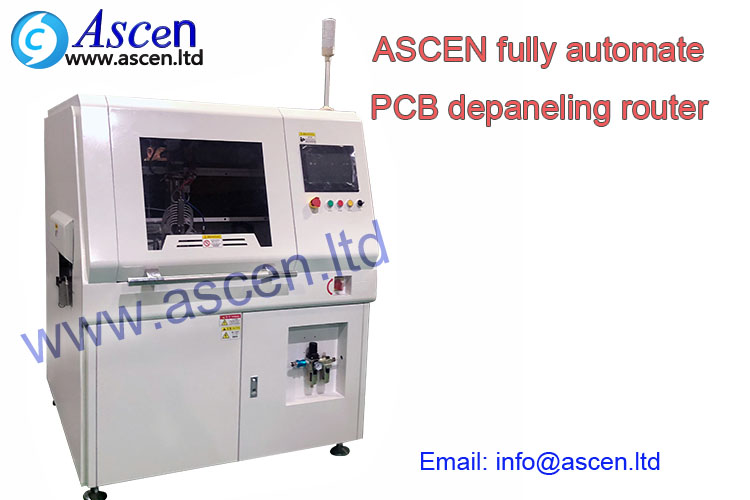

PCB routing machine depaneling equipment is a programmable pcb depaneling system,it can automate routing your PCB board according your PCB design,ASCEN PCB router can as a offline PCB depaneler via manual loading and unloader PCB board,also can as a online router and connect to the robot for automatic pick and place the PCB board.this is the low cost solution of fully automatic operate.very popular in the small and medium-sized manufacturer.
You will know PCB router how to operate on PCB assembly line.
PCB routing machine depaneling equipment is a programmable pcb depaneling system,it can automate routing your PCB board according your PCB design,ASCEN PCB router can as a offline PCB depaneler via manual loading and unloader PCB board,also can as a online router and connect to the robot for automatic pick and place the PCB board.this is the low cost solution of fully automatic operate.very popular in the small and medium-sized manufacturer.、
Item
Scope of application
Model number:
AS-3A(the function can be customized)
Motor drive system:
Servo / stepper motor
Spindle speed:
60000r/s
Cutting performance:
500mm/s
Drive system repeatability:
±0.02mm
Cutting speed:
Max 100mm/S(depends on PCB material and cutting quality)
Resolution:
±0.01mm
Configuration:
X、Y、Z 3 axis
Repeatability:
<0.1mm
PCB positioning:
fixture
Load and unload way:
Manually
PCB thickness:
0.4mm-4mm
Working area:
200*300mm(could be customized made)
Spindle motor power:
0.5KW
Spindle motor speed:
50000r/m
Spindle motor cooling:
Air-cooled
Machine dimension:
650*550*615mm
Weight:
168KG
Security settings:
emergency stop switch
If you as a PCB manufacturer that produce all kinds of PCB board and don't know how to choose the PCB depaneling processing machine,please refer the following PCB depaneler application,if you feel the solution suitable for you,please click and check the detail.
