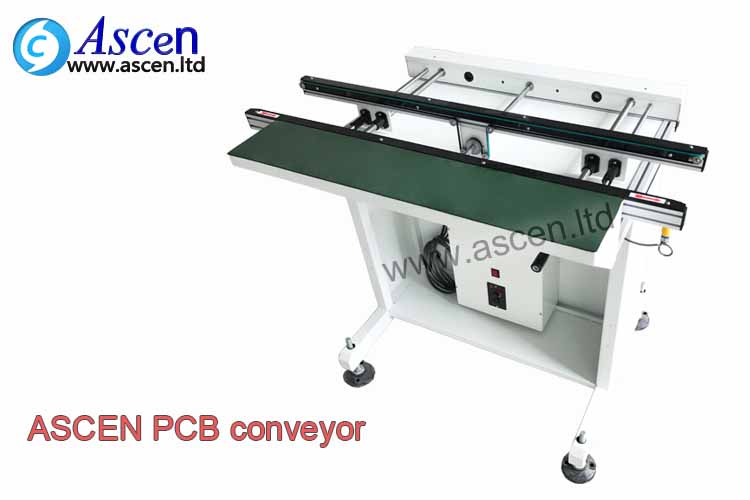

automatic inspection pcb conveyor

Model: HY-460 conveyor

Brand: ASCEN

Delivery Time:15 days

Desciption:

automatic inspection pcb conveyor,SMT conveyor,PCB inspection conveyor,500mm/700mm/1000 length PCB transfer conveyor,PCB Belt Conveyor used for equipment linking, visual inspection, manual assembly, and PCB buffering functions

Send Enquiry Download brochure

Product Details

Application:

automatic inspection pcb conveyor short-length SMEMA-compatible transfer conveyors are used for equipment linking, visual inspection, manual assembly, and PCB buffering functions. Their advantage is the short length, which allows them to be placed anywhere when you have space limitation

Description:

1. Modular design, according to customer demand matching removable

2. Sturdy structural design improves the stability of the equipment.

3. smooth parallel ball screw adjustment method

4. Variable speed control function

5. With circuit board detection mode (board board function)

6. The use of special transmission rail aluminum slot design to prevent the card board

7. The bottom of the increase design, not easy to shift

8. Inspection pcb conveyor can be customized according to customer requirements machine length

9.Compatible SMEMA interfaces.

Specification

ASCEN team provide a full SMT assembly line solutions,including PCB magazine loader, PCB magazine unloader,Magazine NG ok PCB unloader, multi magazine NG OK pcb unloader,dual magazine PCB loader&unloader,PCB destacker,PCB vacuum loader,PCB vacuum suction loader,PCB stacker,PCB magazine vacuum loader, mini PCB loader,PCB magazine loader L type,dual magazine PCB unloader,magazine PCB NG OK unloader,multi magazine PCB unloader,Lift gate PCB conveyor,PCB flip conveyor, PCB shuttle conveyor, PCB coating conveyor, telescopic gate conveyor,PCB turn conveyor,PCB linking conveyor,NG reject PCB conveyor, PCB inspection conveyor, dual lane PCB conveyor,PCB handling conveyor, PCB custom conveyor,SMT linking conveyor,PCB belt conveyor are available as standard and customized products and can be equipped to fit special requirements

Please collecting our web:www.ascen.ltd , we will updated more solution for help your assembly line to save more cost.

Item	Scope of application
Model number: (Inspection conveyor type)	HY-460 conveyor
Dimensions(LWH)	600(length optional )750900mm
PCB Width	50-400mm
Conveyor Height	900+/-20mm
PCB Direction	L-R(R-L)
Speed	0~1500(mm)/Min
Power Consumption	0.5KW
Power Supply	1P AC220V 50/60HZ
Guide-rail Length	0.6-2M(or as requirement)
Control System	0.6-2M(or as requirement)
Control method	Press key+PLC
Foot switch	Standard
Lighting	Option
SOP Rack	Option
Platform Material	ESD Rubber Mat
Communication Plug	SMEMA Signal Plug for up/down line Double-wire cable
