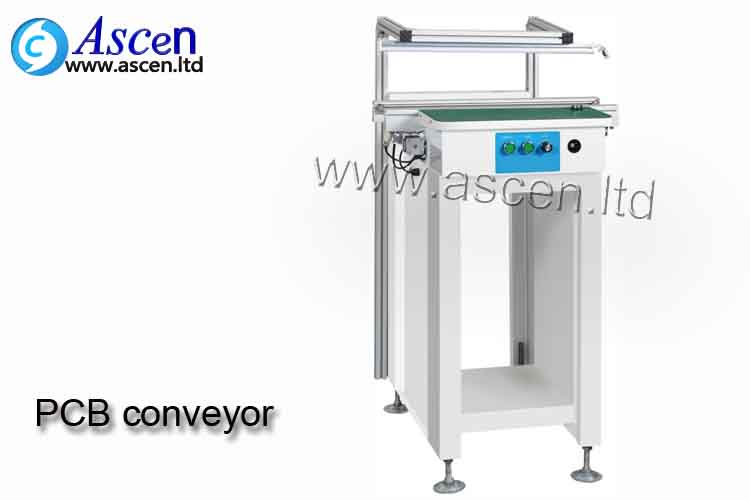

PCB belt conveyor for inspection

Model:HY-460 conveyor

Brand: ASCEN

Delivery Time: 15 days

Desciption:

PCB belt conveyor,SMT inspection conveyor,SMT conveyor,PCB inspection conveyor,500mm/600mm/1000 length PCB conveyor,PCB transfer conveyor used for equipment linking, visual inspection, manual assembly, and PCB buffering functions

Send Enquiry Download brochure

Product Details

Application:

PCB belt conveyor 1000mm length transfer conveyors are used for equipment linking, visual inspection, manual assembly, and PCB buffering functions. Their advantage is the short length, which allows them to be placed anywhere when you have space limitations.

Description:

1. Installed rigid M lead screw, width adjustable system to make sure two tracks move smoothly.

2. Imported circular special belt and patented tracks, can effective solve the thin card guide PCB problem, improve connection stably.

3. Equipped with standard industry signal" SMEMA", which can connect with others machines conveniently.

4. Machine's metal parts are made of high quality aluminum, to make sure superior and durable service.

5. PCB belt conveyor applicable to production line of SMT and AI, easy to connect with before and after processing.

6. When PCB move interposition during transmitting, it has the function of photo electricity automatic inspection and manual releasing.

7. Increasing weight at the bottom to make machine uneasy to be moved, make connection more smoothly.

Specification

ASCEN team provide a full SMT assembly line solutions,including PCB magazine loader, PCB magazine unloader,Magazine NG ok PCB unloader, multi magazine NG OK pcb unloader,dual magazine PCB loader&unloader,PCB destacker,PCB vacuum loader,PCB vacuum suction loader,PCB stacker,PCB magazine vacuum loader, mini PCB loader,PCB magazine loader L type,dual magazine PCB unloader,magazine PCB NG OK unloader,multi magazine PCB unloader,Lift gate PCB conveyor,PCB flip conveyor, PCB shuttle conveyor, PCB coating conveyor, telescopic gate conveyor,PCB turn conveyor,PCB linking conveyor,NG reject PCB conveyor, PCB inspection conveyor, dual lane PCB conveyor,PCB handling conveyor, PCB custom conveyor,SMT linking conveyor,PCB belt conveyor are available as standard and customized products and can be equipped to fit special requirements

Please collecting our web:www.ascen.ltd , we will updated more solution for help your assembly line to save more cost.

Item	Scope of application
Model number: (Inspection conveyor type)	HY-460 conveyor
Dimensions(LWH)	600(length optional )750900mm
PCB Width	50-400mm
Conveyor Height	900+/-20mm
PCB Direction	L-R(R-L)
Speed	0~1500(mm)/Min
Power Consumption	0.5KW
Power Supply	1P AC220V 50/60HZ
Guide-rail Length	0.6-2M(or as requirement)
Control System	0.6-2M(or as requirement)
Control method	Press key+PLC
Foot switch	Standard
Lighting	Option
SOP Rack	Option
Platform Material	ESD Rubber Mat
Communication Plug	SMEMA Signal Plug for up/down line Double-wire cable
