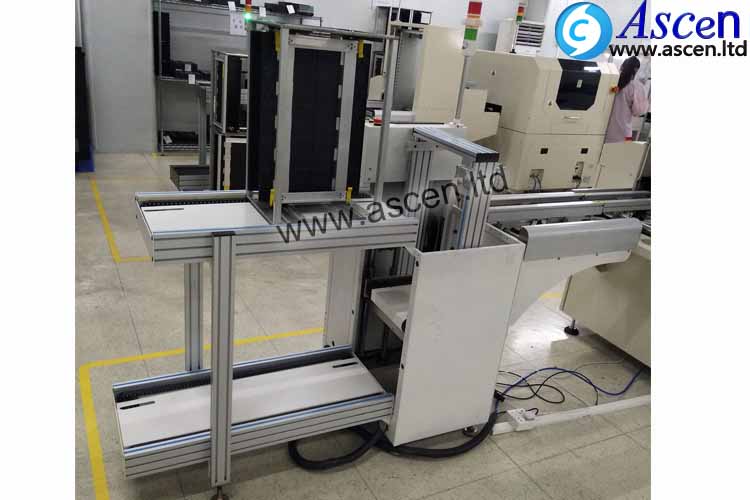

1) Machine Size(L*W*H):1700*780*1200
2) 2)Special Aluminum alloy guide rails and rubber belt
3) Magazine lifting with screw rod by 90W electric-brake motor which made in Taiwan
4) Pneumatic PCB clamping structure
5) Attach one set 0.7m length pcb conveyor
6) Direction:R-L/L-R
7) Adjustable Lifting distance:10,20,30,and 40mm
8) Programmable Mitsubishi PLC and controller
9 PCB Automatic loading to conveyor
10) Operation Control system: Touch Panel controlled interface
11) Power: 220V 50HZ
12) Air pressure: 0.4-0.6MPa
13) the max store PCB Quantity:50pcs
14) One set Electronic control box
| Model NO. | HY-250ULD | HY-330ULD | HY-390ULD | Customized large model for the bigger PCB board |
| PCB size(mm) (L*W)-(L*W） | (50*50)-(350*250) | (50*50)-(350*330) | (50*50)-(350*390) | |
| Machine Size(mm) (L*W*H) | 1700*780*1200 | 1900*860*1200 | 2200*920*1200 | |
| Magazine Size (mm) (L*W*H) | 355*320*565 | 460*400*565 | 535*460*565 | |
| Weight(kg) | Approx. 160kg | Approx.200kg | Approx.240kg |
ASCEN team provide a full SMT assembly line solutions,including PCB magazine loader, PCB magazine unloader,Magazine NG ok PCB unloader, multi magazine NG OK pcb unloader,dual magazine PCB loader&unloader,PCB destacker,PCB vacuum loader,PCB vacuum suction loader,PCB stacker,PCB magazine vacuum loader, mini PCB loader,PCB magazine loader L type,dual magazine PCB unloader,magazine PCB NG OK unloader,multi magazine PCB unloader,Lift gate PCB conveyor,PCB flip conveyor, PCB shuttle conveyor, PCB coating conveyor, telescopic gate conveyor,PCB turn conveyor,PCB linking conveyor,NG reject PCB conveyor, PCB inspection conveyor, dual lane PCB conveyor,PCB handling conveyor, PCB custom conveyor,SMT linking conveyor,PCB belt conveyor are available as standard and customized products and can be equipped to fit special requirements
Please collecting our web:www.ascen.ltd , we will updated more solution for help your assembly line to save more cost.
