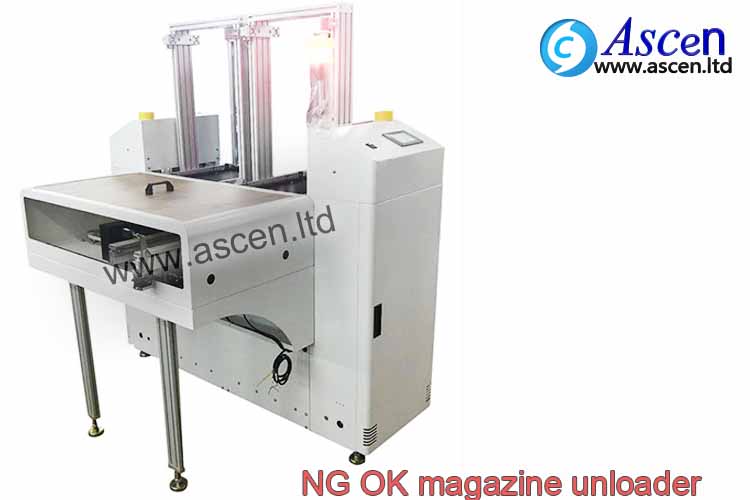

PCB Conveyor LED PCB NG OK unloader separate the NG PCB board and OK PCB board after soldering
Description:
1.PLC Control system, HMI panel , easily operation.
2.Good and defective PCBs can be stored separated automatically with magazine rack.
3.Connecting AOI or ICT allow distinguish good PCBs from NG PCBs by signal.
4.SMEMA compliant.
5.CE certified.
| Item | Scope of application | ||||
| Model number | HY-250 OK/NG ULD | HY-330 OK/NG ULD | HY-390 OK/NG ULD | ||
| Dimensions(L*W*H) | 1510*1500*1200 | 1580*1580*1200 | 1600*1650*1200 | ||
| PCB Width | (50*50)-(350*250mm) | (50*50)-(455*330mm) | (50*50)-(530*390mm) | ||
| Magazine size | 355*320*565mm | 460*400*565mm | 535*460*565mm | ||
| Conveyor Height | 900+/-20mm(or customized) | ||||
| PCB Direction | L-R(R-L) | ||||
| Magazine Qty. | Up 1 and down 1 | ||||
| Magazine change time | About 30s | ||||
| Belt size | ESD 7mm flat belt | ||||
| Power Consumption | 0.6KW | ||||
| Air press and flow rate | 4-6 bar, MAX10L/minute | ||||
| Power Supply | 1P AC220V 50/60HZ or customized available | ||||
| Control method | LCD screen+PLC | ||||
| PCB thickness | =/>0.4mm | ||||
| Communication Plug | SMEMA Signal Plug for up/down line Double-wire cable | ||||
| Weight | Approx.210Kg | Approx.260Kg | Approx.300Kg | ||
|
Note: 1. We can customized the SPI/AOI PCB NG ok unloader with bigger PCB board size. 2. We can optional add extra magazine rack capacity. |
|||||
