programmable pcb depaneling machine takes a multiple module printed circuit board and cuts out (depanels) individual printed circuit boards leaving a scrap frame. you request the classification of the jigs and bits when imported separately and when imported with the PCB separator.
programmable pcb depaneling machine Features:
1.PCB router depaneling machine speeds of up to 100mm/s,positioning speed 500mm/s;
2.Cut continuously without interruption during loading and unloading;
3.High quality shaft system allows the system to quickly ramp,reduce the period of time,Improve productivity, maintaining high precision;
4.Use high-quality hardware to ensure high rigidity and high performance All screws are protected from dust and dirt from entering to improve the life and performance of the shaft;
5.Use high-quality hardware to ensure high rigidity and high performance.

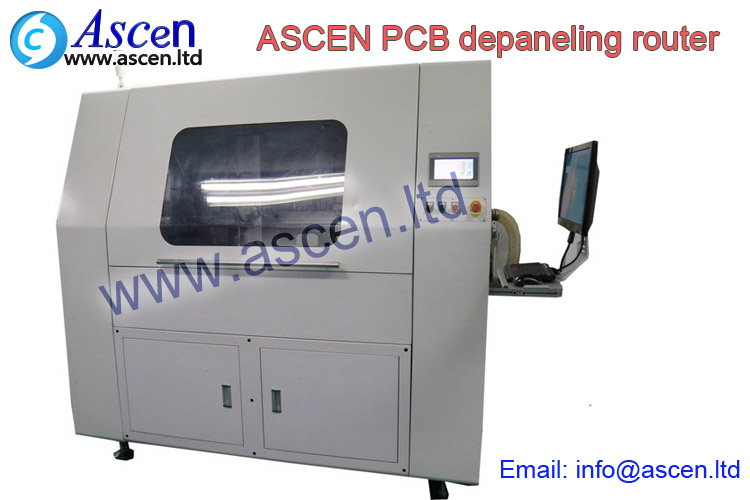

programmable pcb depaneling machine is a programmable pcb depaneling system,it can automate routing your PCB board according your PCB design,ASCEN PCB router can as a offline PCB depaneler via manual loading and unloader PCB board,also can as a online router and connect to the robot for automatic pick and place the PCB board.this is the low cost solution of fully automatic operate.very popular in the small and medium-sized manufacturer.
please click here the video for high speed fully automatic PCB router
Please click here the video for desktop PCB depaneling router
You will know PCB router how to operate on PCB assembly line.
programmable pcb depaneling machine is a programmable pcb depaneling system,it can automate routing your PCB board according your PCB design,ASCEN PCB router can as a offline PCB depaneler via manual loading and unloader PCB board,also can as a online router and connect to the robot for automatic pick and place the PCB board.this is the low cost solution of fully automatic operate.very popular in the small and medium-sized manufacturer.、| Item | Scope of application |
| Model number: | AS-3A(the function can be customized) |
| Motor drive system: | Servo / stepper motor |
| Spindle speed: | 60000r/s |
| Cutting performance: | 500mm/s |
| Drive system repeatability: | ±0.02mm |
| Cutting speed: | Max 100mm/S(depends on PCB material and cutting quality) |
| Resolution: | ±0.01mm |
| Configuration: | X、Y、Z 3 axis |
| Repeatability: | <0.1mm |
| PCB positioning: | fixture |
| Load and unload way: | Manually |
| PCB thickness: | 0.4mm-4mm |
| Working area: | 200*300mm(could be customized made) |
| Spindle motor power: | 0.5KW |
| Spindle motor speed: | 50000r/m |
| Spindle motor cooling: | Air-cooled |
| Machine dimension: | 650*550*615mm |
| Weight: | 168KG |
| Security settings: | emergency stop switch |
